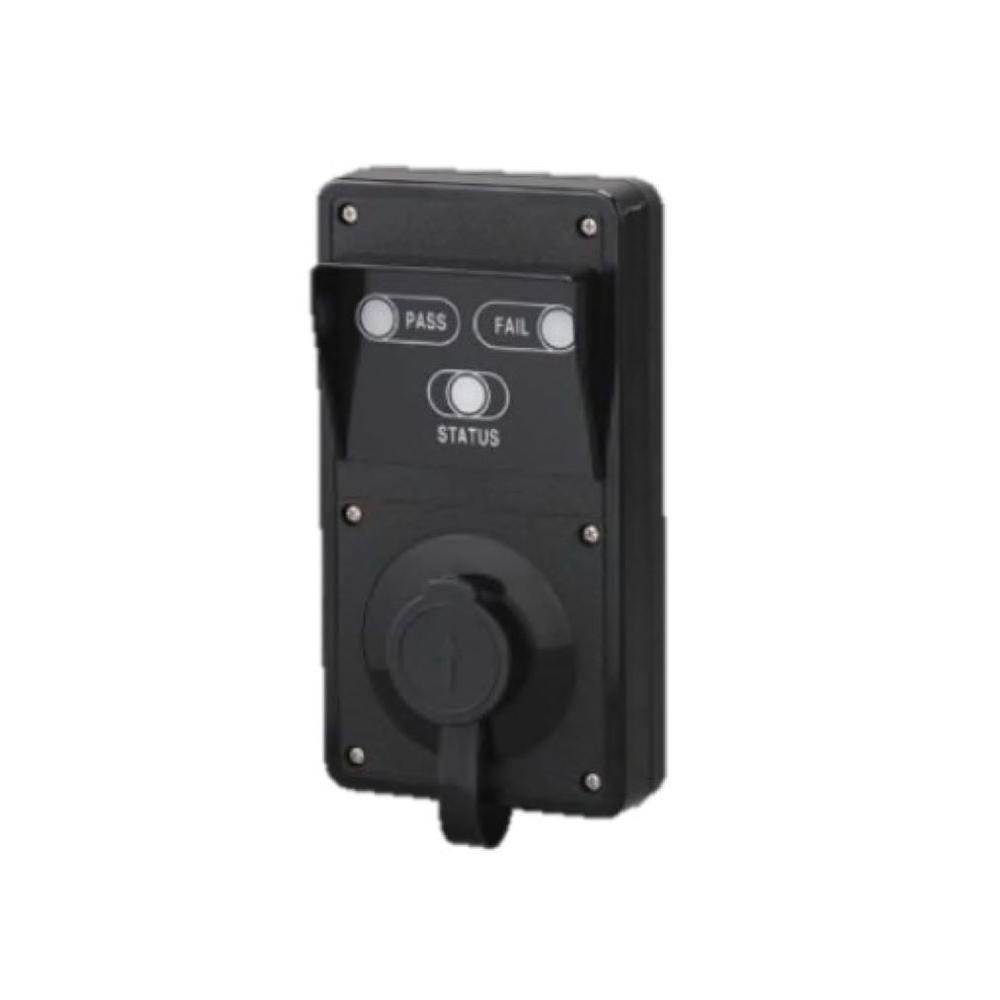

What is Entrance Breathalyzer System, EBS & EBS-010
It is to control the entry of workers into their workplace by simple checking of alcohol concentration from
subject’s exhaled breath. It can be installed with turnstiles, auto door, speed gate or any other type of access control system.
Installation on access control system in Russia & South Africa
Enhanced and simple design
-Enabling breath sampling correctly and easy to read test result
PC connectable(Optional)-USB interface
Semi-water proof case
-Endurable temperature & humidity changes
Sampling hole coverage
-Preventing sensor damaged from dust or pollutants in the air
Test result indicated by LED display :
PASS : Indicate Green Lamp
Indication of B.A.C.
FAIL : Indicate Red Lamp
(Level of PASS can be adjustable)
Accuracy : ±10% at 0.500 g/L
Replacable fuelcell type alcohol sensor
Power supply DC 12V 1.5A
Warming up 3~4sec
Ambient conditions: Storage: -0 to 50 ℃ / Operation: 5℃ to 40 ℃
Dimension: 206 (height) X 108 (width) X 37 (thickness) mm
