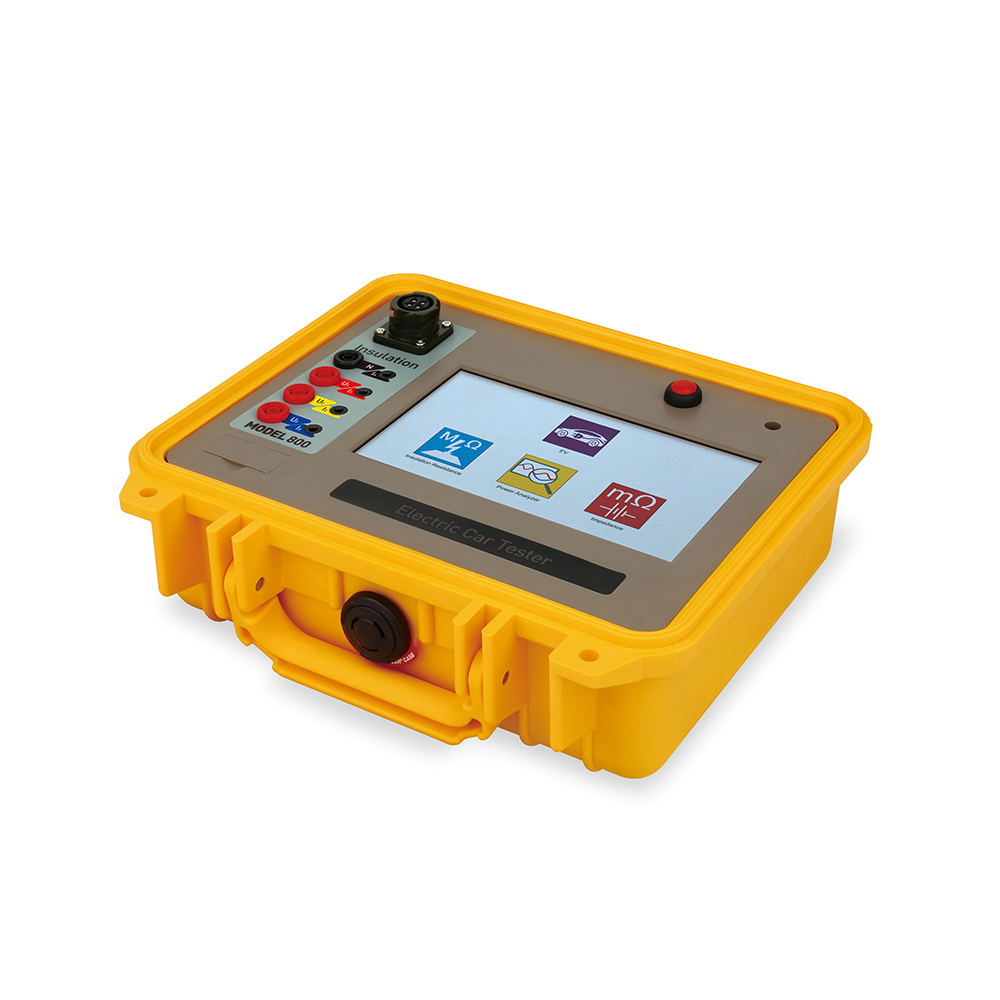

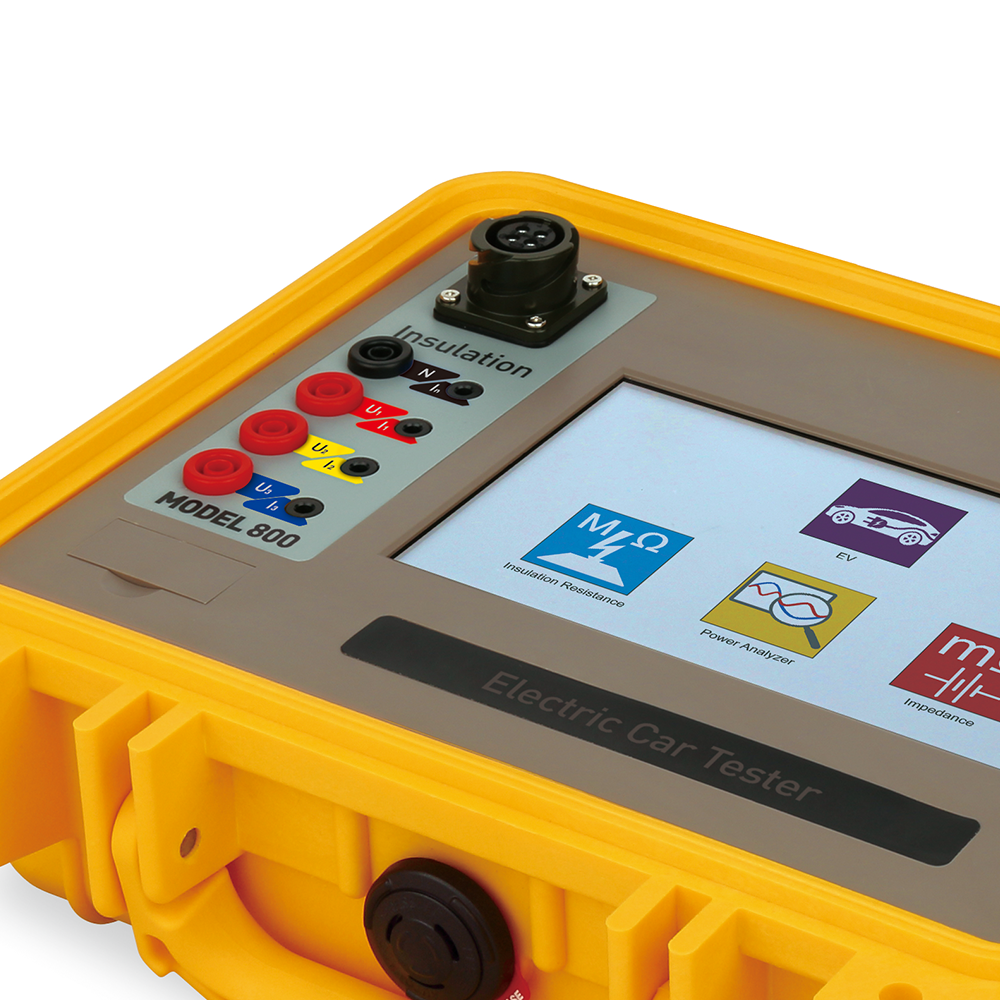

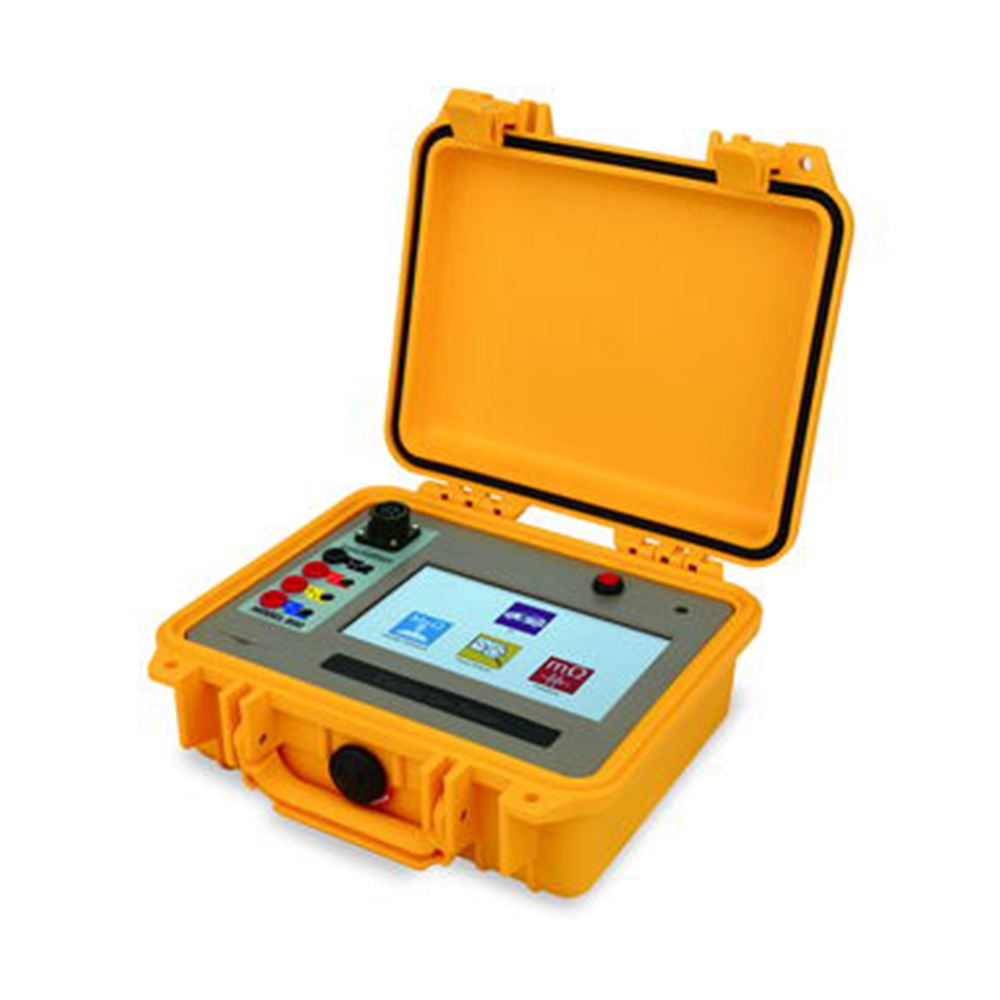

TEKON800 EV/HEV diagnostic is a testing system capable of comprehensively testing the performance characteristics of power system in hybrid-electric (HEV) and electric vehicles(EV). This is a portable type tester dedicated to EV and HEV, which offers comprehensive power
measurements and analyses including internal faults and degree of ageing of parts used therein.
Key functions for measurements : Analysis of power (AC/three-phase, DC), internal resistance of battery pack, motor, harness, insulation resistance, harmonics analysis.

• EV, HEV battery pack (BMS), motor control unit (MCU), power, cable assembly, sensor electrical performance diagnosis
• Measurement of EV/HEV inspection items, including judgment of acceptable/nonacceptable according toEV/HEV inspection directives
• Enables the user to download, view and analyze stored data, and make up reports
• Generates standardized inspected records and system performance reports
• Measures internal resistance (mΩ) of EV/HEV battery pack (500V max)
• Measures three-phase power (1P2W, 3P3W, 3P4W)
• Measures waveforms (4 channels)
• Measures harmonic spectrum (up to 50st harmonic)
• Measures insulation resistance
• Measures leakage current (optional)
• Removable wireless printer applied

Product Name	EV/HEV Diagnostic
Brand Name	TEKON
Model No.	TEKON800
Color	Black
Weight	3.5kg
Size	270(L)×246(W)×124(H) mm
Origin	Republic of Korea
