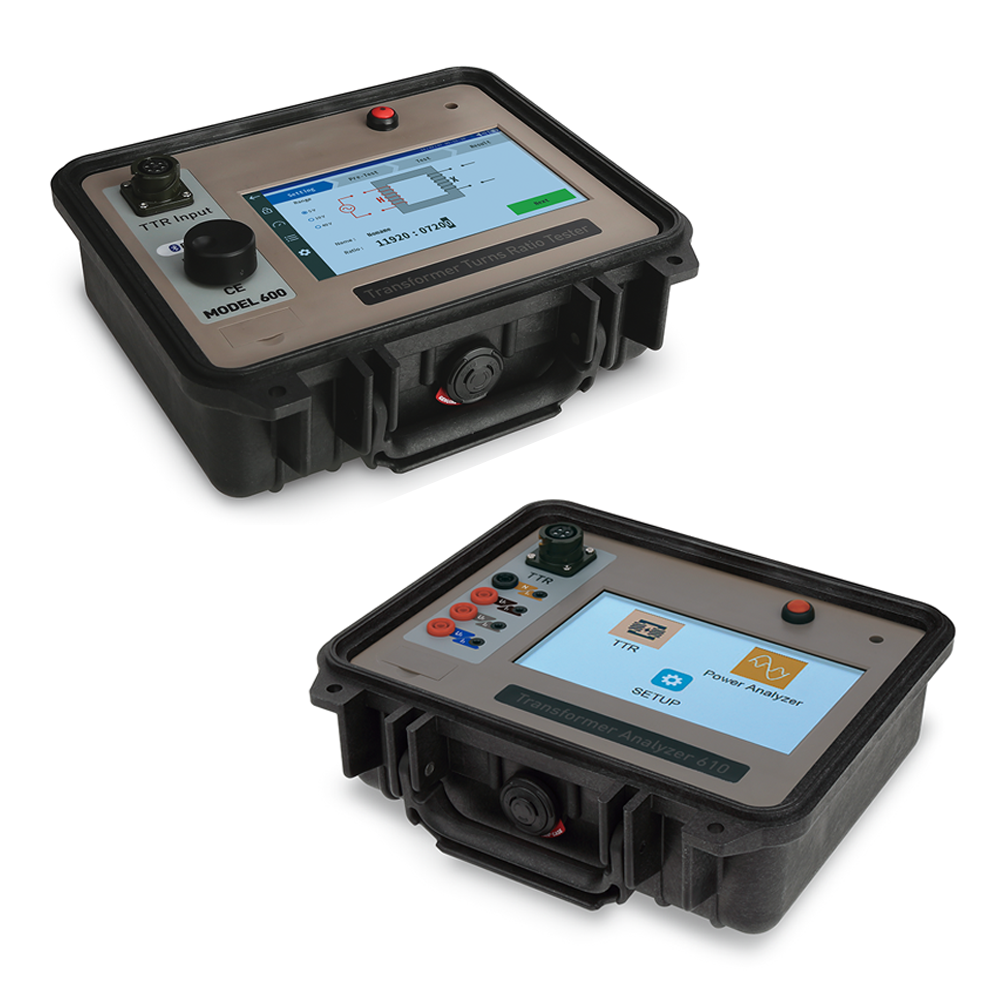

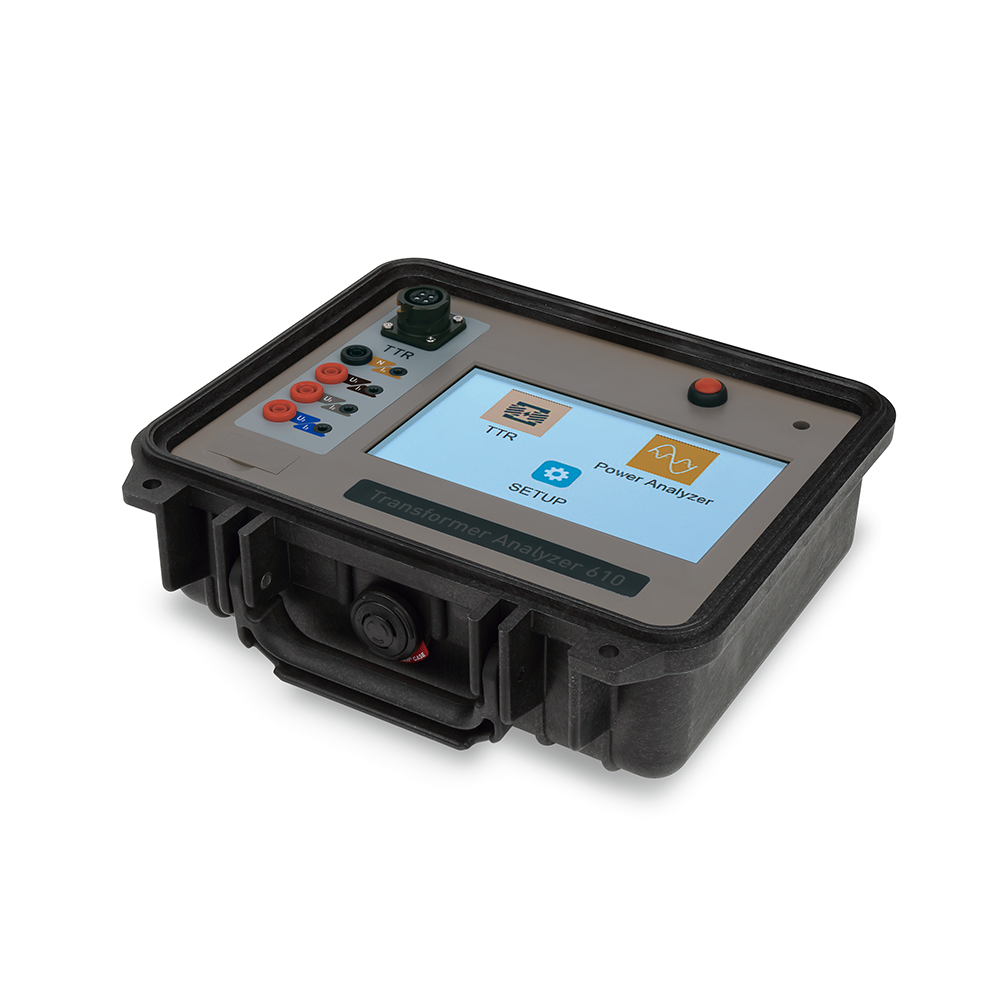

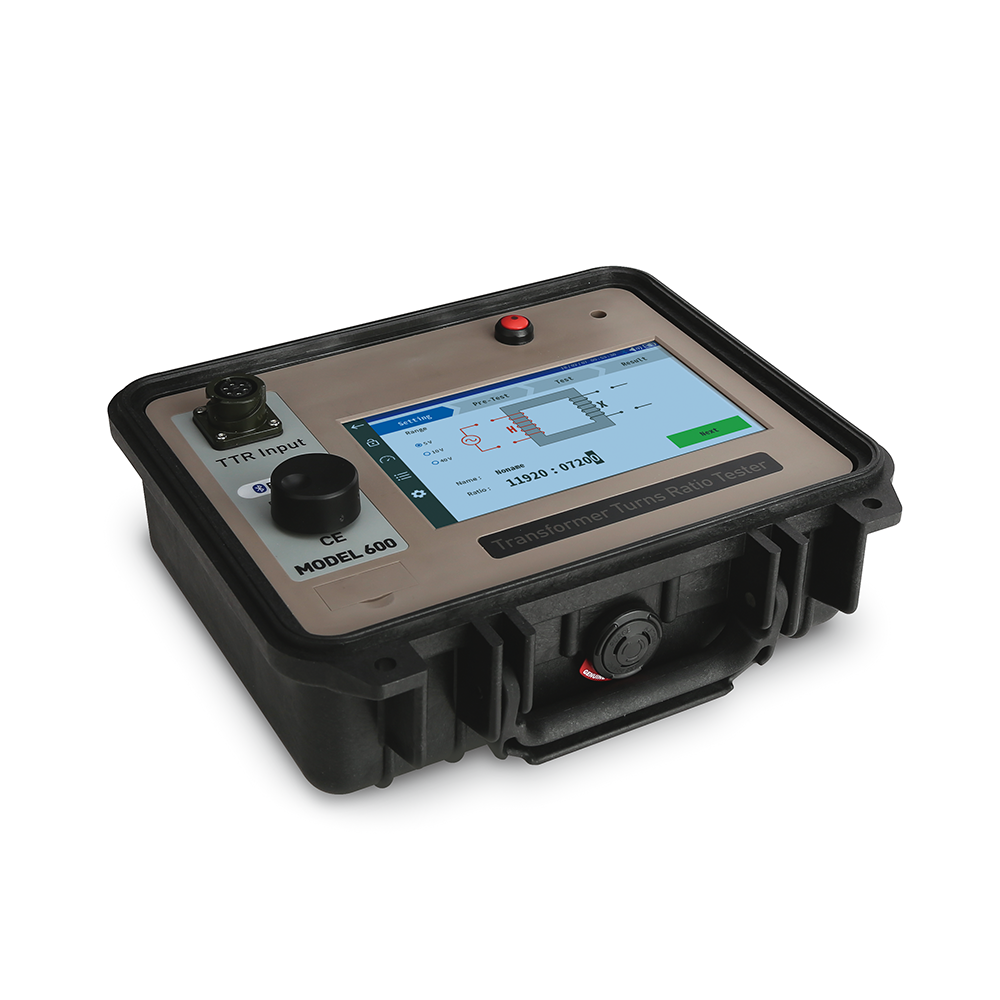

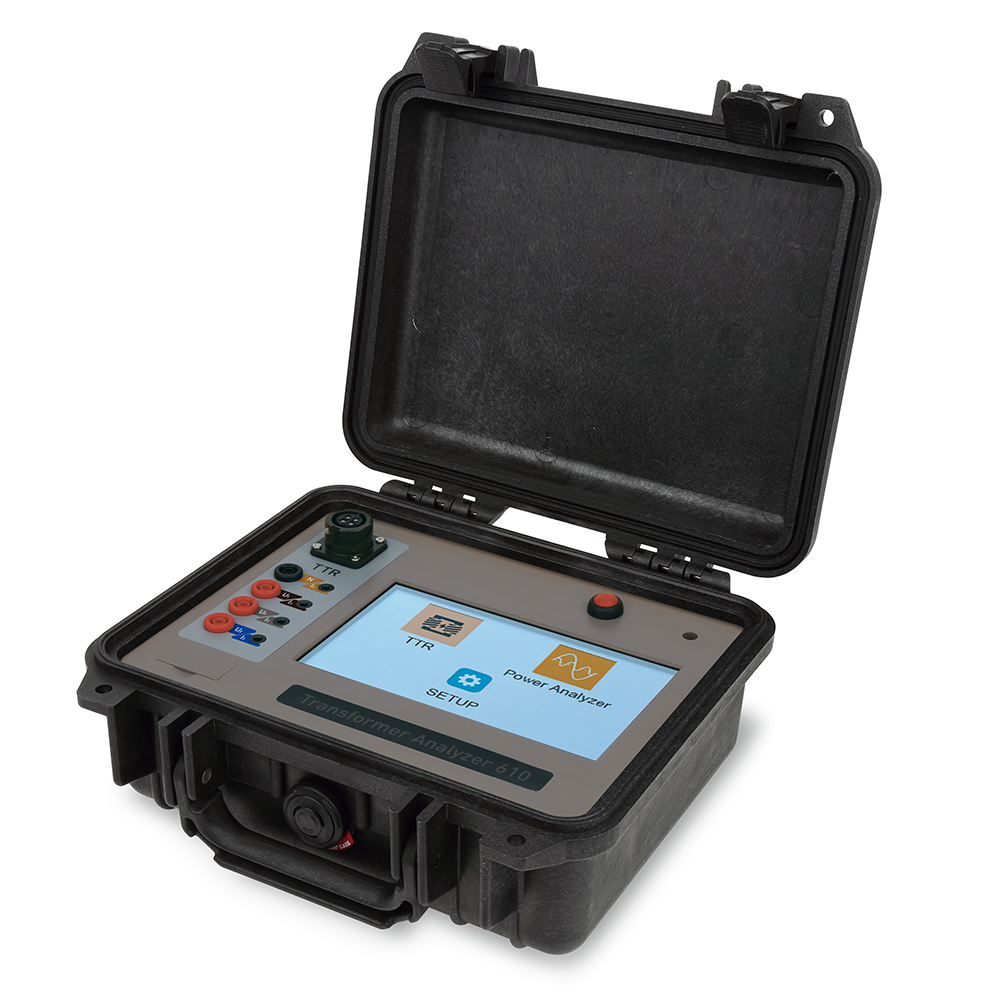

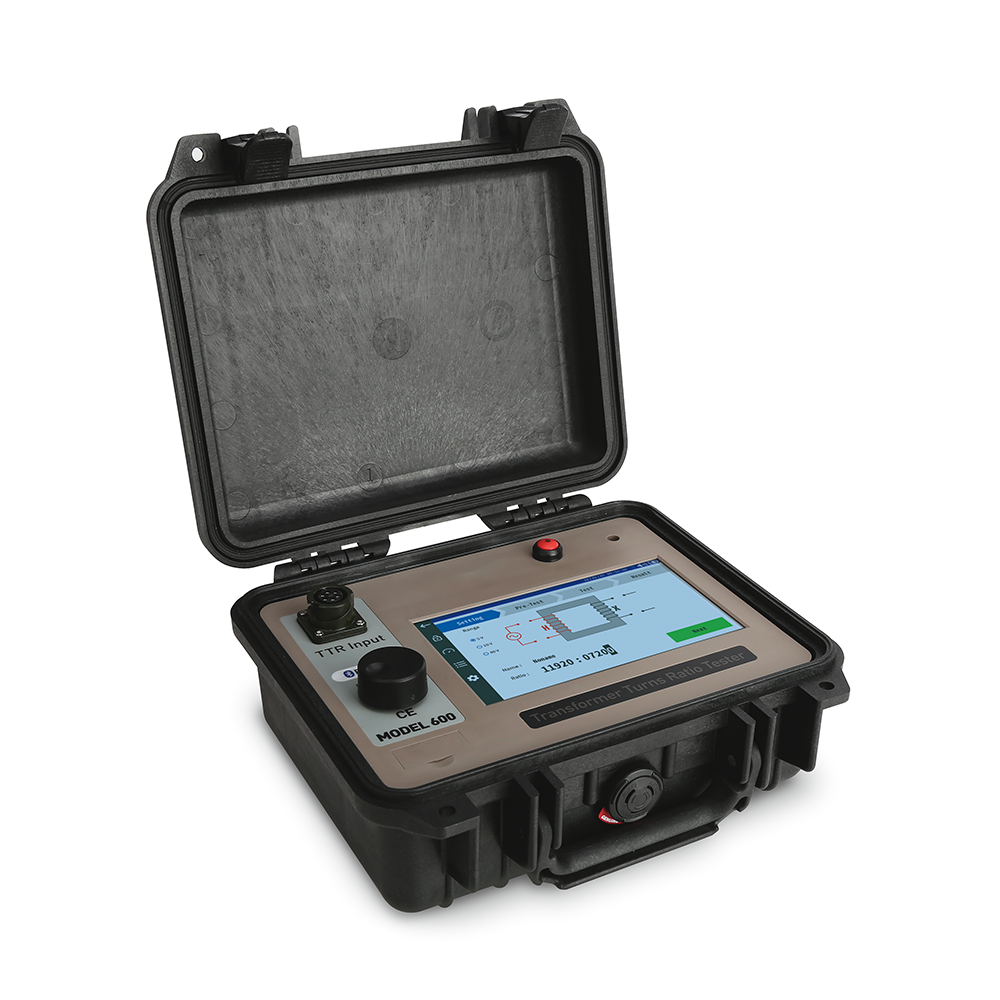

TEKON600, 610 is a tester that measures the turns ratio of windings in single-phase and three-phase distribution with the application of 7” wide touchscreen aimed to maximize user convenience. In particular, it can be used anywhere as it is powered by chargeable battery. Selectable test voltages include 5Vac, 10Vac, 40Vac, 100Vac(Optional) enabling you to measure a variety of transformers.
It uses the IEEE C57.12.90 measurement method and accurately measures the voltage at the transformer’s winding at no load. The TEKON600 can be used to test power regulator, power transformer, CT (Current Transformer) and PT (Potential Transformers).
This model is divided into two: TEKON600-1P (single-phase) and TEKON600-3P (three-phase). You are able to print out measurement data via printer, save them to the meter’s internal memory, or download to your PC.

• Portable with robust and lightweight enclosure
• Simultaneously measures turns ratio, excitation current, polarity and phase angle
• Verifies limiter settings: function to judge whether acceptable or non-acceptable
• Application of dockable wireless printer (bluetooth) (Optional)
• Micro SD applied as basic memory.
• Measurements automatically saved to designated storage space in real time
• Automatic measurement and display of measurement result
• Communication: USB
• Output of measurement data in reports
• Chargeable battery (Li-ion) operated
• Removable wireless printer applied

Product Name	Transformer Analyzer
Brand Name	TEKON
Model No.	TEKON600	TEKON610
Color	Black	Black
Weight	3.5kg	3.5kg
Size	270(L)×246(W)×124(H) mm	270(L)×246(W)×124(H) mm
Origin	Republic of Korea
