Portable Light Line 50m_4BDL-0500
-
Payment
O/A , T/T
-
MOQ
100 Set
-
Supply Ability
10,000 Set per One-Time
-
Supply Details
Customization In Short Supply Limited goods
Negotiable / Depends on quantity
-
Country of sale
Asia, World Wide, Americas, Europe, Middle East
-
PRICE
-
FOB
Depend on quantity
-
ITEM SPECIFICS
-
Brand
Model 4BDL-05004BDREAM
-
origin
Republic of Korea
-
Size(Capacity)
H200*W240*D110
-
Weight
3kg
-
Color
orange
PRODUCT DESCRIPTION

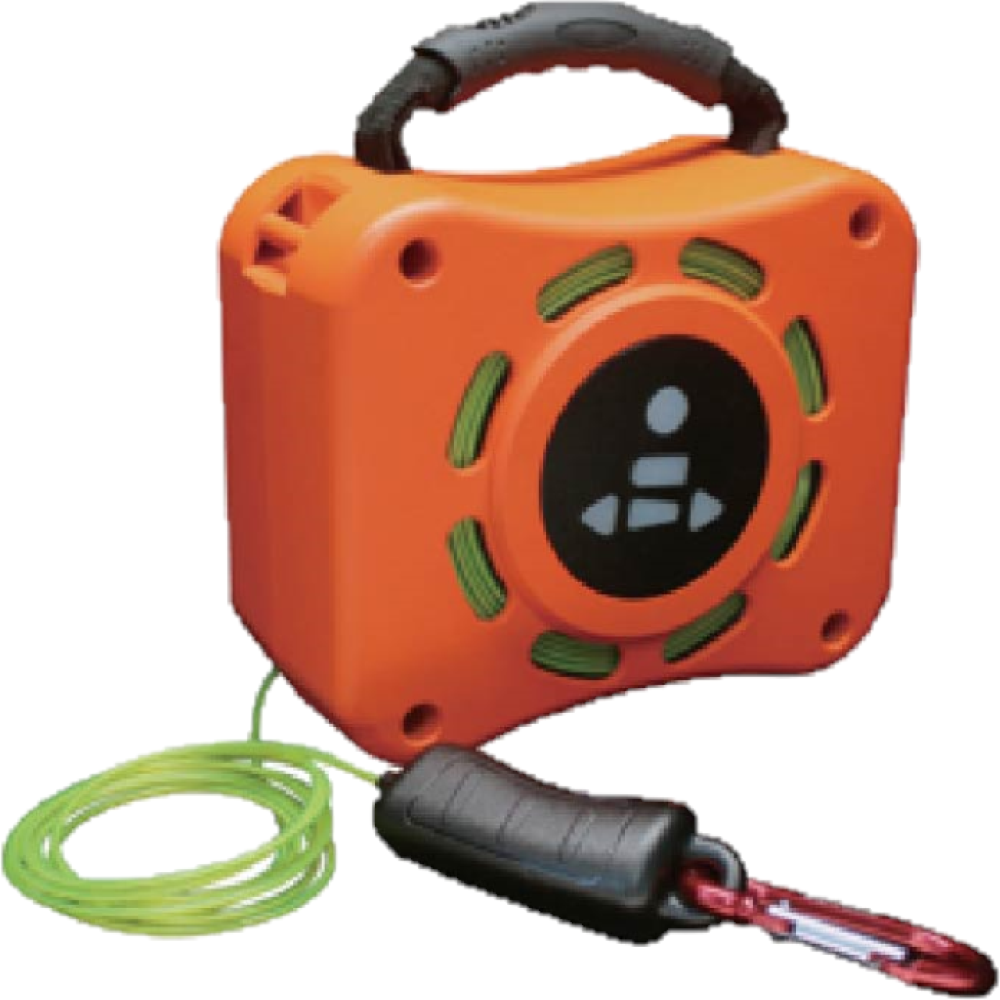

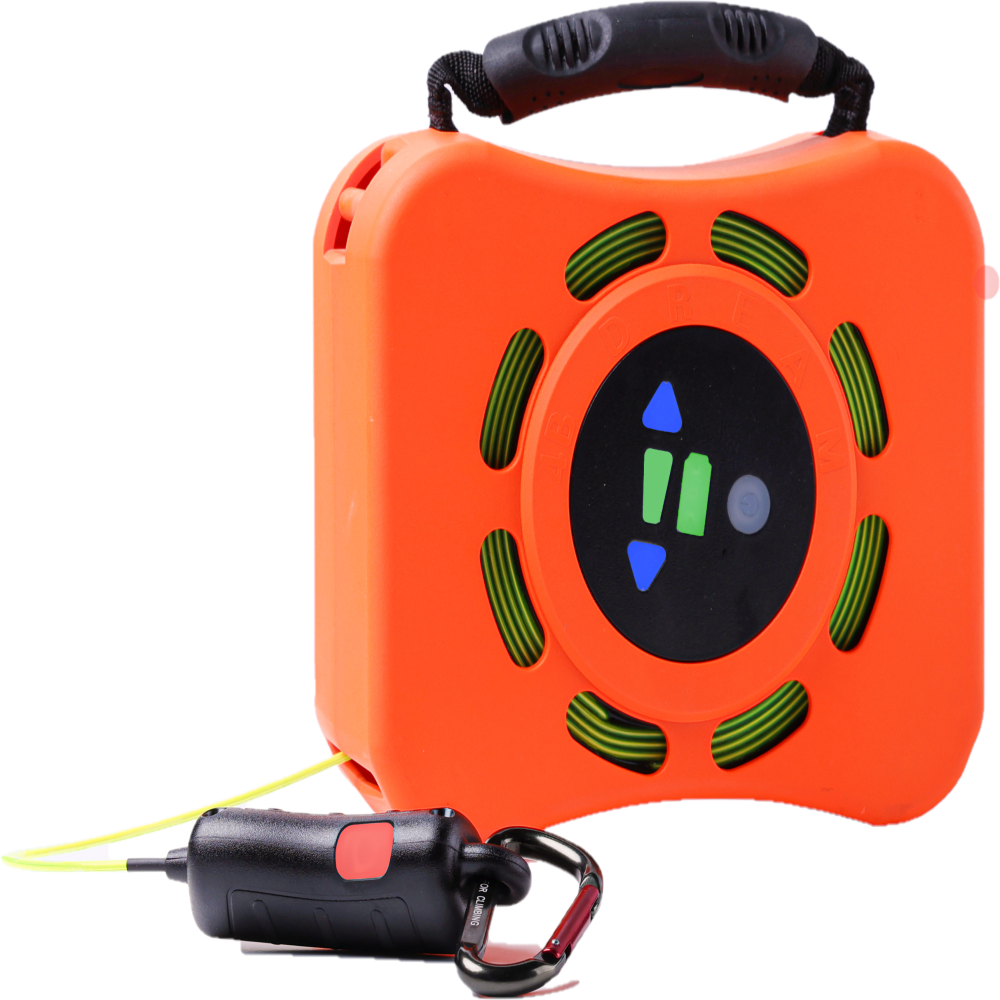

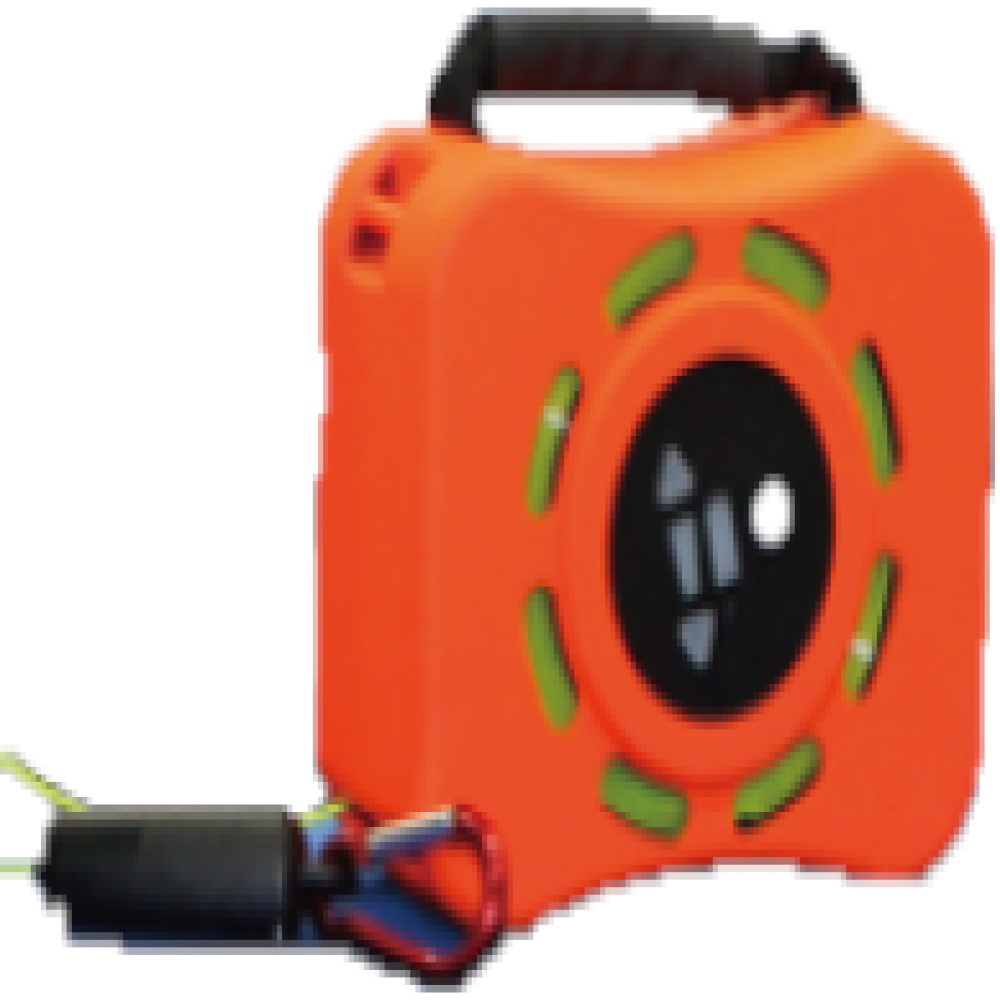

Portable Light Line 50m
Key Features
1. Dual signal communication system between main body and handpiece
2. Three lighting modes: steady, flashing (1/sec), emergency visual x-alert (3/sec)
3. High durability and waterproof (Main body: IP55 / Line: IPx8)
4. Heat resistant up to 150°C – suitable for firefighting environments
5. Automatic x-alert sound with visual flash in emergency mode
6. Ergonomically designed with shoulder strap and handle for field deployment
2. Three lighting modes: steady, flashing (1/sec), emergency visual x-alert (3/sec)
3. High durability and waterproof (Main body: IP55 / Line: IPx8)
4. Heat resistant up to 150°C – suitable for firefighting environments
5. Automatic x-alert sound with visual flash in emergency mode
6. Ergonomically designed with shoulder strap and handle for field deployment
Advantages
1. Self-manufactured for quality assurance
2. 5-year product warranty (except EL Wire)
3. Designated as Excellent Procurement Product (PPS)
4. Patents registered in Korea, US, Japanese, CE certified
5. Rechargeable and removable battery (11.1V, 2.6~3.0A) for ease of use
2. 5-year product warranty (except EL Wire)
3. Designated as Excellent Procurement Product (PPS)
4. Patents registered in Korea, US, Japanese, CE certified
5. Rechargeable and removable battery (11.1V, 2.6~3.0A) for ease of use

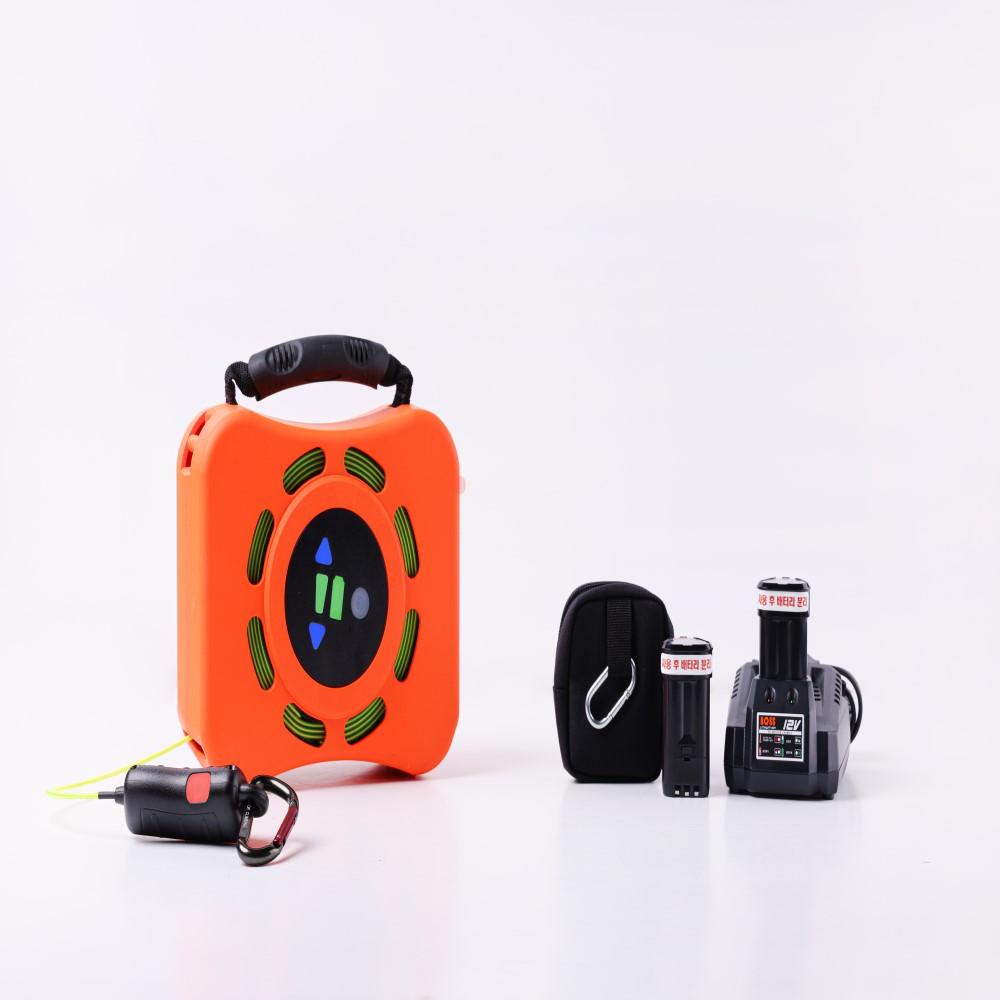

Components
1. Main body with EL wire
2. Charging adapter (LED status indicator: Red = Charging / Green = Fully Charged)
3. Two rechargeable batteries
4. Handpiece (emergency communication unit)
5. Shoulder strap
6. User manual
2. Charging adapter (LED status indicator: Red = Charging / Green = Fully Charged)
3. Two rechargeable batteries
4. Handpiece (emergency communication unit)
5. Shoulder strap
6. User manual
How to Use
1. Insert the battery correctly by matching the groove and close the cover securely.
2. Press the power button for 1.5 seconds to turn on; press again to cycle modes.
3. Use the brightness adjustment button to control output (Hi/Mid/Low).
4.For emergency, press the emergency button to activate the x-alert mode.
5. After use, rotate the winding handle clockwise to retract the EL wire properly.
6. Use the included shoulder strap for convenient field operations.
7. Store the battery separately when not in use.
2. Press the power button for 1.5 seconds to turn on; press again to cycle modes.
3. Use the brightness adjustment button to control output (Hi/Mid/Low).
4.For emergency, press the emergency button to activate the x-alert mode.
5. After use, rotate the winding handle clockwise to retract the EL wire properly.
6. Use the included shoulder strap for convenient field operations.
7. Store the battery separately when not in use.
Cautions
1. Do not use for purposes other than evacuation guidance.
2. Do not disassemble or arbitrarily modify the product.
3. If a burning smell or overheating occurs, discontinue use and contact the manufacturer.
4. Avoid water immersion and long-term storage in damp environments.
5. Do not expose to solvents or strong chemicals – wipe with a soft cloth if necessary.
6. Ensure the EL wire cover is not damaged to prevent electric shock or malfunction.
7. Store in a cool, dry place (recommended storage temperature: -20°C to +20°C).
8. Avoid storing near flammable materials or direct sunlight.
2. Do not disassemble or arbitrarily modify the product.
3. If a burning smell or overheating occurs, discontinue use and contact the manufacturer.
4. Avoid water immersion and long-term storage in damp environments.
5. Do not expose to solvents or strong chemicals – wipe with a soft cloth if necessary.
6. Ensure the EL wire cover is not damaged to prevent electric shock or malfunction.
7. Store in a cool, dry place (recommended storage temperature: -20°C to +20°C).
8. Avoid storing near flammable materials or direct sunlight.
Specification
0.2
| Model name | 4BDL-0500 |
| Dimension | H200 x W240 x D110mm |
| Weight | 2.9 ± 0.2kg(Including Removable Battery) |
| Light Line Length / Diameter | 50m ± 0.5m / 3.0mm ± 0.3mm |
| Flame Retardant | UL94-V0 |
| Brightness | Luminance 30cd/m2 and more |
| Light-emitting line | High Carbon Steel Wire inserted with tensile strength 2,200N/mm2 and more |
| IP code | Light-emitting line - IPx8/Main body - IP55 |
| Portability | Single Operation |
| Power | 11.1V 2.6A ~ 3.0A(Removable and Rechargeable external battery used) |
| Operating Time | Lighting on - Hi 170min, Mid 186min, Low 220min Flashing(1 blink per second) - Hi 338min, Mid 380min, Low 465min Visual alarm(3 blinks per second) - Hi 365min, Mid 445min, Low 555min |
| Certified | Excellent Procurement, CE Certification |
