ITEM SPECIFICS
-
Brand
Model YMPYMP Pump
-
origin
Republic of Korea
-
Size(Capacity)
Please consult
-
Package Includes
Pump Bode, Reducer, Motor
-
Function
Pulseless
-
Color
Anodizing on aluminum Alloys, Stainless color
-
Material
Stainless steel, Aluminum, Peek, PTFE
-
Features
Pulseless High Pressure Plunger Metering Pump with 3 heads plunger type
PRODUCT DESCRIPTION

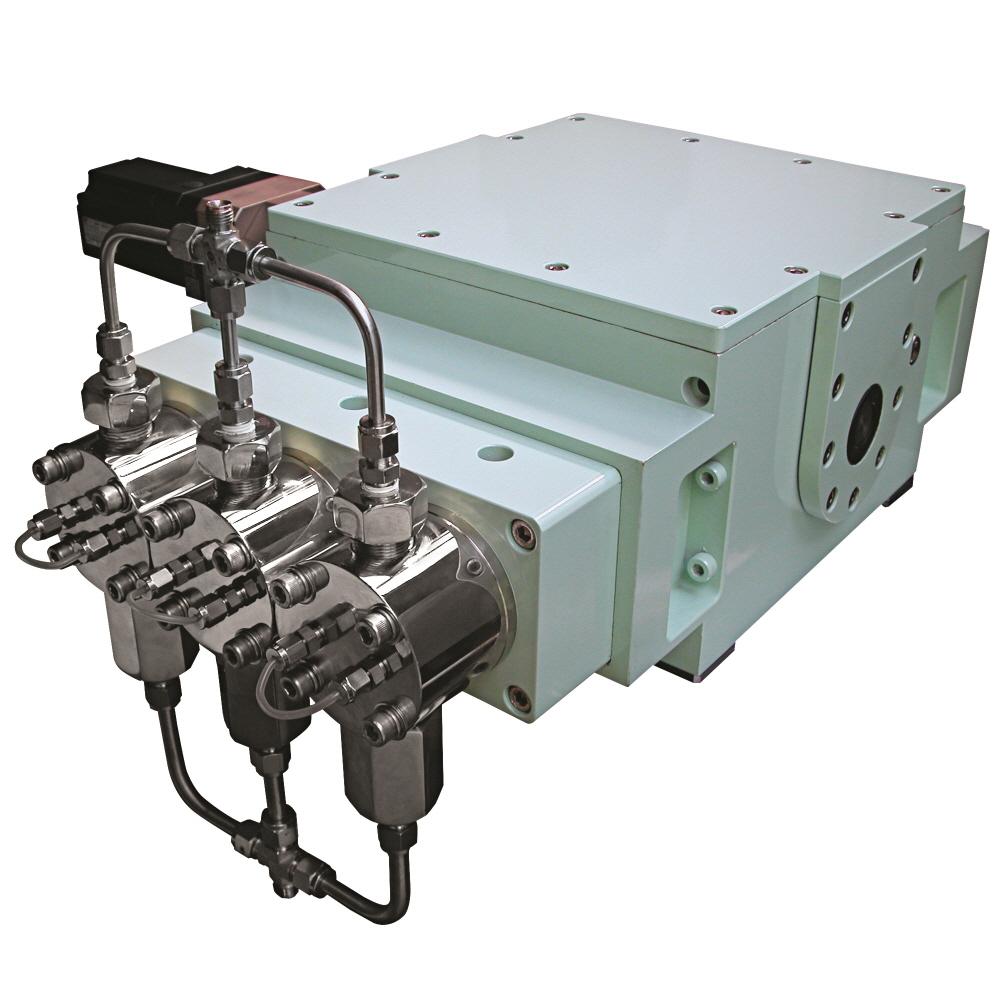

Pulseless High Pressure Plunger Metering Pump
As the pulseless high pressure metering pump of YMP model has no pulse, no pulse reduction device such as damper is required and accurate flow
control is available with high flow accuracy and rapid responsibility even under high pressure.
Because the pump heads are non-metallic, they are used in semiconductor cleaning process
Webpage link:
- 2 Heads Plunger Metering Pump: https://www.yjbiochrom.com/en/products/metering-pumps/2heads-plungers-metering-pump/
- 3 Heads Plunger Metering Pump: https://www.yjbiochrom.com/en/products/metering-pumps/3heads-plungers-metering-pump/
◈ Features
- - Precision quantitative pump with 3 head.
- - Using a special constant velocity cam that is calibrated, the sum of the quantities emitted from the three plunger is constant.
- - By applying a mechanical plunger return device so that the cam and bearing are always in contact with each other without any gap, the cam moves smoothly and accurately.
- - No vibration or noise in piping as fluid is discharged without pulsation, and there is very little variation in flow rate.
- - All parts are made with a machining center and CNC to reduce assembly errors.
- - Reproducibility is high with 99.8% so it can be used in high-precision injection.
- - Fast response and precise flow control are provided by inverter and servo control.
- - With high reproducibility and precision, the output is proportional to the rotating number of cam.
- - It is economical because it does not need a device to reduce pulse.
- - Design and build according to the customer's requirements.
◈ Application field
- □ Chromatography
- □ Sewage treatment plant
- □ Quantitative injection and spraying
- □ Injection and filling in the extruder
- □ Semiconductor cleaning
- □ Food processing
- □ Line Mixing
- □ Coating
◈ Specification
|
Model
|
Flow Rate
(㎖/rev)
|
Max. Flow Rate
(㎖/min)
|
Max. Discharge
Pressure
(Mpa)
|
Flow
Accuracy
|
Flow
Reproducibility
|
Pulse Rate
|
|
|
YMPS
|
03
|
0.13
|
15
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
04
|
0.23
|
27
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
06
|
0.51
|
61
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
08
|
0.90
|
108
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
10
|
1.41
|
169
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
YMPA
|
06
|
1.70
|
203
|
100
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
08
|
3.02
|
361
|
23
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
10
|
4.71
|
565
|
23
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
12
|
6.79
|
814
|
23
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
15
|
10.60
|
1,272
|
15
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
20
|
18.85
|
2,261
|
10
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
YMPB
|
15
|
18.56
|
2,226
|
15
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
20
|
32.99
|
3,958
|
12
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
25
|
51.54
|
6,185
|
8
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
30
|
74.22
|
8,906
|
5
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
40
|
131.95
|
13,194
|
3
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
YMPC
|
25
|
51.54
|
6,185
|
15
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
30
|
74.22
|
8,906
|
12
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
40
|
131.95
|
15,833
|
8
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
50
|
206.17
|
24,740
|
5
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
|
60
|
296.88
|
35,625
|
3
|
≤ ± 0.5%
|
≤ ± 0.1%
|
≤ ± 1.0%
|
|
Notes
- 1. The materials of the pump head can be customized according to the customer's needs such as 316L, PEEK, PTFE, titanium, etc.
- 2. Available viscosity ranges from 1 to 20,000mP·s
- 3. The operating temperature is from –30°C to 120°C.
- 4. In addition to standard specifications, we are producing different types of pumps depending on capacity and discharge pressure.
- 5. The maximum output and number of rotations depend on the viscosity.
- 6. The output of the table above is attached to only one side, and when attached to both sides, the volume of discharge is doubled.
※ Read following notice carefully.
In order to select the optimal quantitation pump, inform the following details as much as possible when requesting an estimate or ordering.
1. Condition of transfer liquid
- (1) Name (2) Component (3) Concentration (4) Temperature (5) Viscosity
2. Condition of use
- (1) Process for use (2) Required discharge amount (3) Intake piping conditions (4) Discharge piping conditions
- (5) Power (6) Ambient temperature (7) Installation location and method (8) Operating conditions
